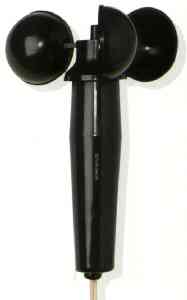

Yacht Anemometer Type 454:
|
|
For weather observers, amateur meteorologists and yachtsmen, the yacht anemometer is the ideal instrument for measuring wind speed. Its robust sensor design and the splash-water protected indicating instrument renders the yacht anemometer suitable for using also under harsh environmental conditions. The instrument requires no supply and is simple to install it
and can be placed in operation quickly and without complications.
|
Types:
• Anemometer measuring range 0 - 100 km/h
• Anemometer measuring range 0 - 100 km/h with additionally sealed indicator.
with range expanding kit:
• Anemometer measuring range 0 - 200 km/h
• Anemometer measuring range 0 - 200 km/h with additionally sealed indicator.
|
 |
Measuring principle:
The cup star vane rotates at a speed proportional to wind speed and drives the alternating current generator. The current produced is supplied via a 2-core cable to the indicator which displays the speed in km/h, nodes and beaufort. As the alternating current generator produces current independently, the measuring system requires no further supply. |
 |
|
| Yacht anemometer Type 454: |
Measuring range: |
| Yacht anemometer |
0 - 100 km/h |
- Yacht anemometer
with range expanding kit: (x2)
|
0 - 200 km/h |
- Indication / Meter:
Yacht anemometer
(100 km/h)
|
- 0 - 54 nodes
- 0 - 100 km/h
- 0 - 10 Beaufort
|
| Start up: |
ca. 0,6 m/s |
| Length of cable with plug |
15 m |
| Total weight |
approx. 470 g |
| Cup star probe |
approx. 90 g |
| Plug |
approx. 5 g |
| Probe mount |
approx. 40 g |
| Cable (15 m) |
approx. 190 g |
| Indicator / Meter |
approx. 140 g |
|
Specifications subject to change without further notice.
|
|
|
|
|
